Spring Boot でAzure FunctionsのQueueStorageTriggerを実装して、ローカルで動作確認する手順を示す。
プロジェクトの作成方法については、以下の記事参照。
バージョン
Spring Boot:2.7.5
Java:17
ファンクションを新規追加する
ファンクションを新規追加する場合は、HandlerクラスとFunctionクラスをそれぞれ追加する。
この時、Handlerクラスはorg.springframework.cloud.function.adapter.azure.FunctionInvoker<I, O>
を継承し、Functionクラスはjava.util.function.Function<T, R>
を実装して作成する。
各ファンクションでDIしたいbeanがある場合はConfigurationクラスを作成する。
Configクラス作成
ファンクションクラスをbean登録するためのConfigクラスを作成する。 その他処理を行うにあたって必要なクラスがある場合は記述する。
// Configクラス @Configuration public class QueueStorageConfiguration { @Bean public QueueStorageFunction queueStorage() { return new QueueStorageFunction(); } }
Functionクラス作成
Functionクラスには、ファンクションごとに行いたい処理を記述する。
// Functionクラス public class QueueStorageFunction implements Function<String, String> { public String apply(String s) { return s; } }
Handlerクラス作成
Handlerクラスにはファンクションを呼び出す処理を記述する。
// Handlerクラス public class QueueStorageHandler extends FunctionInvoker<String, String> { // Functionクラスのbean登録名とHandlerクラスの@FunctionName()の属性に // 指定した名前は一致させる @FunctionName("queueStorage") public void execute( @QueueTrigger(name = "message", queueName = "Storage", connection = "AzureWebJobsStorage") String message, final ExecutionContext context) { handleRequest(message, context); } }
トリガーの設定
トリガーの設定はアノテーションで行う。@FunctionName("queueStorage")を付与したメソッドのパラメーターにcom.microsoft.azure.functions.annotation.QueueTrigger
を付与する。
アノテーションの属性については以下の通り。
属性名 | 説明 |
---|---|
name | 関数シグネチャのパラメーター名を入力する。 関数がトリガーされると、このパラメーターの値にはキューメッセージの内容が含められる。必須 |

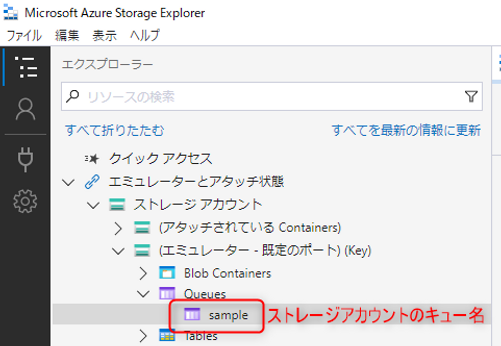

queueName | ストレージ アカウントのキュー名を入力する。必須 |
connection | ストレージ アカウントの接続文字列を入力する。必須 |
ファンクションを呼び出す処理
O FunctionInvoker<I, O>.handleRequest(I, ExecutionContext)
メソッドでファンクションを呼び出すことが出来る。
// 記述例
String response = handleRequest(timerinfo, context);
ローカルでの動作確認
QueueStorageTriggerの起動には、Azure Blob Storageが必要。
今回は、ローカル環境で使用できるAzure Blob StorageのエミュレータであるAzuriteを使用する例を示す。
Azuriteの導入
コマンドプロンプトで以下のコマンドを実行する。
npm install -g azurite
インストール完了後にc:\\azurite
ディレクトリを作成し、以下のコマンドでAzuriteを起動する
azurite --silent --location c:\\azurite --debug c:\\azurite\\debug.log
起動すると以下のようなログが表示される
C:>azurite --silent --location c:\\azurite --debug c:\\azurite\\debug.log Azurite Blob service is starting at http://127.0.0.1:10000 Azurite Blob service is successfully listening at http://127.0.0.1:10000 Azurite Queue service is starting at http://127.0.0.1:10001 Azurite Queue service is successfully listening at http://127.0.0.1:10001 Azurite Table service is starting at http://127.0.0.1:10002 Azurite Table service is successfully listening at http://127.0.0.1:10002
起動中のAzuriteはCtrl + c
で停止できる。
ファンクションの設定
ファンクションプロジェクトのlocal.settings.json
を開き、AzureWebJobsStorage
にUseDevelopmentStorage=true
と設定する。
{ "IsEncrypted": false, "Values": { "AzureWebJobsStorage": "UseDevelopmentStorage=true", "FUNCTIONS_WORKER_RUNTIME": "java", "MAIN_CLASS":"jp.co.sample.functions.Application" } }
ファンクションの処理の中でAzureBlobStorageに対して処理を行っている場合、以下の接続設定を利用する。 以下はAzuriteの接続設定である。
設定 | 値 |
---|---|
アカウントキー | Eby8vdM02xNOcqFlqUwJPLlmEtlCDXJ1OUzFT50uSRZ6IFsuFq2UVErCz4I6tq/K1SZFPTOtr/KBHBeksoGMGw== |
アカウント名 | devstoreaccount1 |
Blobエンドポイント | http://127.0.0.1:10000/devstoreaccount1 |
Azurite起動中はMicrosoft Azure Storage Explorerの「ローカルで接続済み」->「ストレージアカウント」->「エミュレーター」で起動中のエミュレータの操作をすることも可能。
ファンクション動作確認
ファンクションの作成完了後にプロジェクトをビルドする。
gradlew azureFunctionsPackage
以下のコマンドでAzuriteを起動する
azurite --silent --location c:\\azurite --debug c:\\azurite\\debug.log
ファンクションを起動する。
gradlew azureFunctionsRun
起動に成功すると以下のようにファンクションの一覧が表示される。
> Task :azureFunctionsRun Azure Function App's staging directory found at: C:\\pleiades-2021-06\\pleiades\\workspace\\hello-spring-function-azure-gradle\\build\\azure-functions\\java-functions Azure Functions Core Tools Core Tools Version: 3.0.3734 Commit hash: 61192bb28820be76916f85209916152801483456 (64-bit) Function Runtime Version: 3.1.4.0 Functions: http: [POST] <http://localhost:7071/api/http> queue: queueTrigger
起動後にAzure Queue storage メッセージが作成されたタイミングでファンクションが実行される。
メッセージを手動で追加する場合は以下の手順を行う。

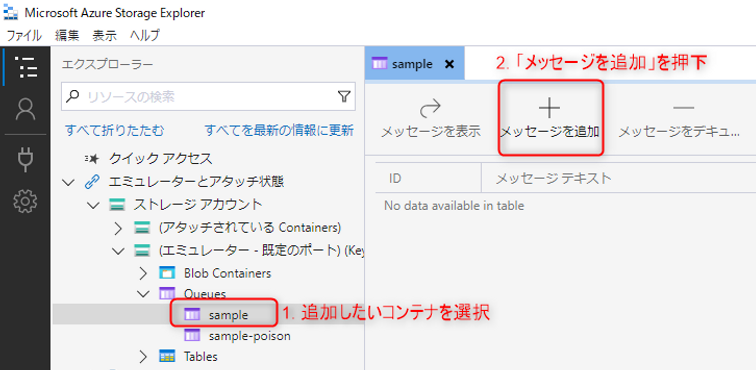

メッセージを追加したいコンテナをビューワーに表示して、「メッセージを追加」を押下

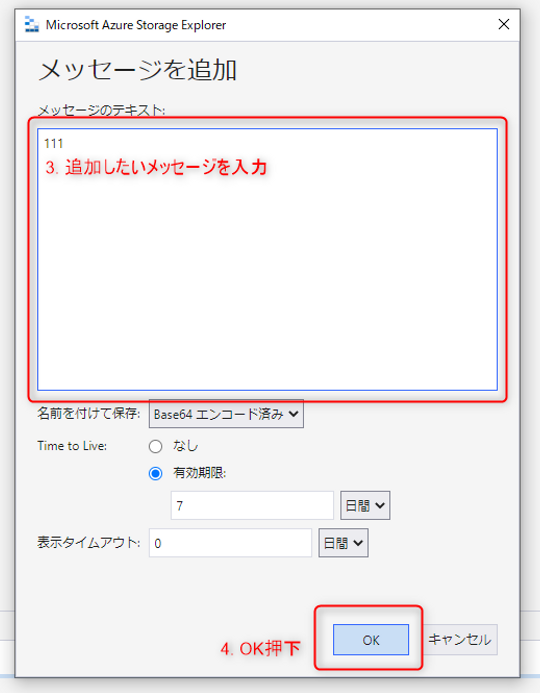

開いた子画面に、追加したいメッセージを入力して「OK」を押下
QueueStorageTriggerの設定変更
QueueStorageTriggerの設定を変更したい場合は、ファンクションプロジェクトのhost.json
の「queues」の設定を編集する。
{ "version": "2.0", "extensions": { "queues": { "maxPollingInterval": "00:00:02", "visibilityTimeout" : "00:00:30", "batchSize": 16, "maxDequeueCount": 5, "newBatchThreshold": 8, "messageEncoding": "base64" } } }
プロパティ | デフォルト値 | 説明 |
---|---|---|
maxPollingInterval | 0:01:00 | キューのポーリングの最大間隔 最小間隔は100 ミリ秒 間隔は、maxPollingInterval を上限として指数関数的にインクリメントされる |
visibilityTimeout | 0:00:00 | メッセージの処理が失敗したときの再試行間隔 |
batchSize | 16 | ファンクションが同時に取得して、並列で処理するキューメッセージの数 処理中のメッセージの数が newBatchThreshold まで減少すると、設定した数のメッセージを取得し、処理を開始する 1 つのファンクションにつき同時に処理されるメッセージの最大数は、batchSize に newBatchThreshold を加えた値となり、この制限は、キューによってトリガーされる各ファンクションに個別に適用される |
maxDequeueCount | 5 | 有害キューに移動する前に、メッセージの処理を試行する回数。 |
newBatchThreshold | N*batchSize/2 | 同時に処理されているメッセージの数がこの数まで減少すると、新規でキューメッセージを取得するN は、App Service または Premiumプランで実行されている場合に使用可能な vCPU の数を表しており、従量課金プランの場合、「1」 |
messageEncoding | base64 | メッセージのエンコード形式 この設定は、バージョン 5.0.0 以降の拡張機能のバンドルでのみ使用可能 有効値は base64 もしくは none |
参考:host.json 設定
